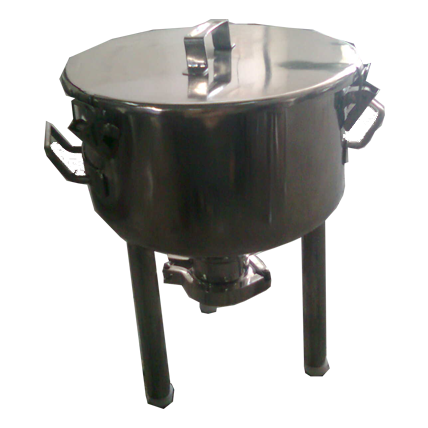

Intermediate Product Container
IPC Containers and BINS are the most popular shifting containers used in the producing flow of solid dosage. Different processing crafts for solid materials can be operated in the same container. The frequent charging and discharging of materials are reduced thus avoiding dust and cross pollution. It's conformity with GMP requirements.
There is no dead angle, no concave/convex face and no screw on the surface. The surfaces outside and inside are polished to high quality. Roughness degree inside is Ra =0.6 µ, and outside is Ra= 0.8 µ
Volume | Dia. A | Dia. B | H |
---|---|---|---|
300 | 400 | 800 | 1240 |
400 | 400 | 800 | 1400 |
600 | 500 | 1100 | 1315 |
800 | 500 | 1100 | 1500 |
1000 | 500 | 1200 | 1575 |
Volume | A*A | H |
---|---|---|
300 | 800 | 1240 |
400 | 800 | 1400 |
600 | 1100 | 1315 |
800 | 1100 | 1500 |
1000 | 1200 | 1575 |
