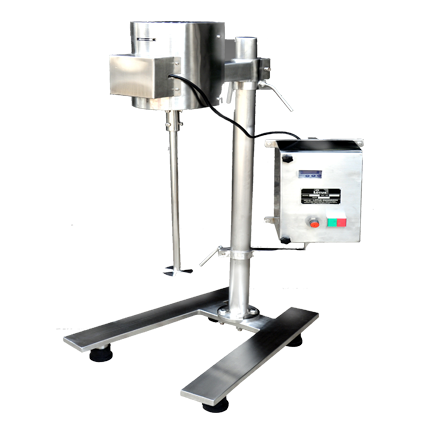

Name: Laboratory Stirrer
Brand: Lotus Engineers

Description

Lotus Engineers brings you Laboratory Stirrer that meets the international standards. This equipment is specifically used for R&D applications and laboratory purposes in industries like Food and beverages, Pharmaceuticals, Cosmetics and Processing.

As the leading Pharma machinery Manufacturer in Ahmedabad, we use the top quality 304 SS grade components to build our machineries thus ensuring our clients are supplied only the best equipment in the market. Being used in various industries, the Laboratory Stirrer is required to perform at various speeds. To facilitate this, we have built a control system which allows the stirrer to rotate at a speed range of 100 to 2800 rpm which gives our clients a huge window to operate efficiently. A very accurate RPM Indicator constantly updates the user about the speed of the machine.

Like all our machineries, our Laboratory Stirrer is sleek, built for high performance and maintenance free operations. We are a prefered Pharmaceutical Machinery Manufacturer in Ahmedabad as we offer both standard sizes as well as customization options to our customers to serve them to the best of our ability.

Salient Features:
Technical Specifications:

All Ss Parts Shall Be Aisi 304 Quality Stainless Steel Materials To Avoid Any Rusting.
Sturdy Base And Specially Designed Shaft Locking Gives Noise Less And Long Trouble Free Performance.
All Product Contact Parts Can Be Easily Dismantled For Cleaning.
Unit Shall Be Provided With Speed Controlling System To Run The Stirrer Shaft At Different Rpm Ranging From 100 - 2800 Rpm As Per Process Requirement.
Unit Shall Be Provided With Rpm Indicator To Monitor The Running Speed Of Lotus Laboratory Stirrer.

Description	Detailed Specifications
Construction	Cgmp Construction.
Drive Motor Hp	0.5 Hp (0.37 Kw)
Drive Motor Rpm	2820 Rpm
Power Characteristics	415 ±10% Volts, 3 Phase 50 Hz, Ac
Stirrer Shaft Diameter	Dia. 20 M X 800 Mm Long
Stirrer Blade Type	2 Different Types Of Blades With Swipe Dia75 Mm
	-1 Nos And Dia 110 Mm -1 Nos
Staring Capacity In Ltrs.	25 To 75 Ltrs.
Arm Centre Distance	430 Mm Approx.
Unit Is Having Threading Type Shaft For Easy Fixing Into Motor Clamp.
Overall Dimensions	850 X 750 X 1940 Mm Total Ht. (Approx)

Application

Laboratory And R & D Application In Pharmaceuticals, Food & Beverages, Cosmetics & Process Industries.

Note

Dimensions & Technical Details Are Subject To Change As Per Customers' Requirement Without Any Further Notice
