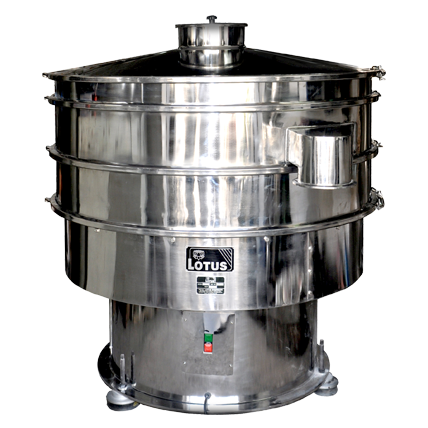

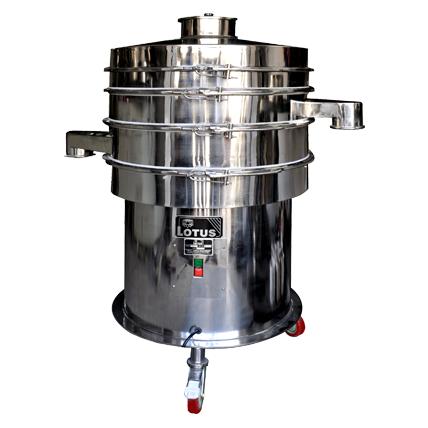

Vibro Sifter



Lotus Engineers presents a series of world class Vibro Sifters which are highly useful in pharmaceutical and food industries. We are the top Vibro Sifter Manufacturers offering a wide range of extremely efficient machineries having the highest performance.

As the name suggests, a Vibro Sifter is helpful in sieving and segregating ingredients in powder or granule form. This stage is extremely vital as it helps to grade the elements and thus leaders in food, pharma and powder processing industries trust us to be their choicest Vibro Sifter Manufacturer Ahmedabad. Our Vibro Sifter range comes loaded with features which make them best in the business. Compact and sleek, these machines not only are rugged but highly energy efficient. With minimum level of maintenance, you can harness their capacity to sieve and grade powers flawlessly.

Being the leading Pharmaceutical Machinery Manufacturer in Ahmedabad, each of our equipment are designed according to international standards and we even offer customization. As renowned Vibro Sifter Manufacturers we offer different models and a wide range of screen sizes in Vibro Sifter.


  • Portable & Compact Design Requires Less Floor Space.
  • Noiseless, Maintenance Free Efficient Equipment For Sieving & Grading Application.
  • Available In Various Models Providing Screening Diameter Of 12", 20", 30", 36" & 48".
  • Less Power Requirement Compare To Conventional Sieving Machine, Leads To Lower Energy Consumption.
  • Cgmp Construction With Ss 316 Contact Parts.
  • Easy Dismantling And Cleaning Facility For Contact Parts.
  • Wide Range Of Screen Sizes 4# To 200# Sizes.
  • Double & Triple Deck Options Available On Demand.
Description Detailed Specifications
Size 12" / 20" / 30" / 36" / 48"
Capacity Up To 400 Kgs. / Hr. Depending Upon Size.
Model Cgmp Model
Contact Parts Ss 316 ( Ss 316 L Upon Demand)
Noncontact Parts Ss 304 Or Cladded With Ss 304
Overall Dimensions 30" - 900 X 900 X 1260 Mm
Power Requirement 3ph/415vac/50hz
Drive Motor Special Vibratory Motor, Non Flame Proof
Drive Motor Hp 12" - 0.25 Hp
20" & 30" - 0.5 Hp
36" & 48" - 1.0 Hp
Starter Dol Starter Shall Be Provided
Finish - Contact Parts 220 Grit Mirror Polish
Finish - Noncontact Parts 150 Grit Mat Finish
Wheels 03 Nos. Pu Wheels With Ss Bracket Shall Be Provided For Easy Mobility.
Gaskets All Rubber Gaskets Shall Be Of Food Grade Neoprene Rubber. Silicon Gaskets Shall Be Provided On Demand.
